Digger

Individual Spare Parts

Notice: Ref is used to identiy the part from the exploded view, when contacting Munro Engineers use Part Number.

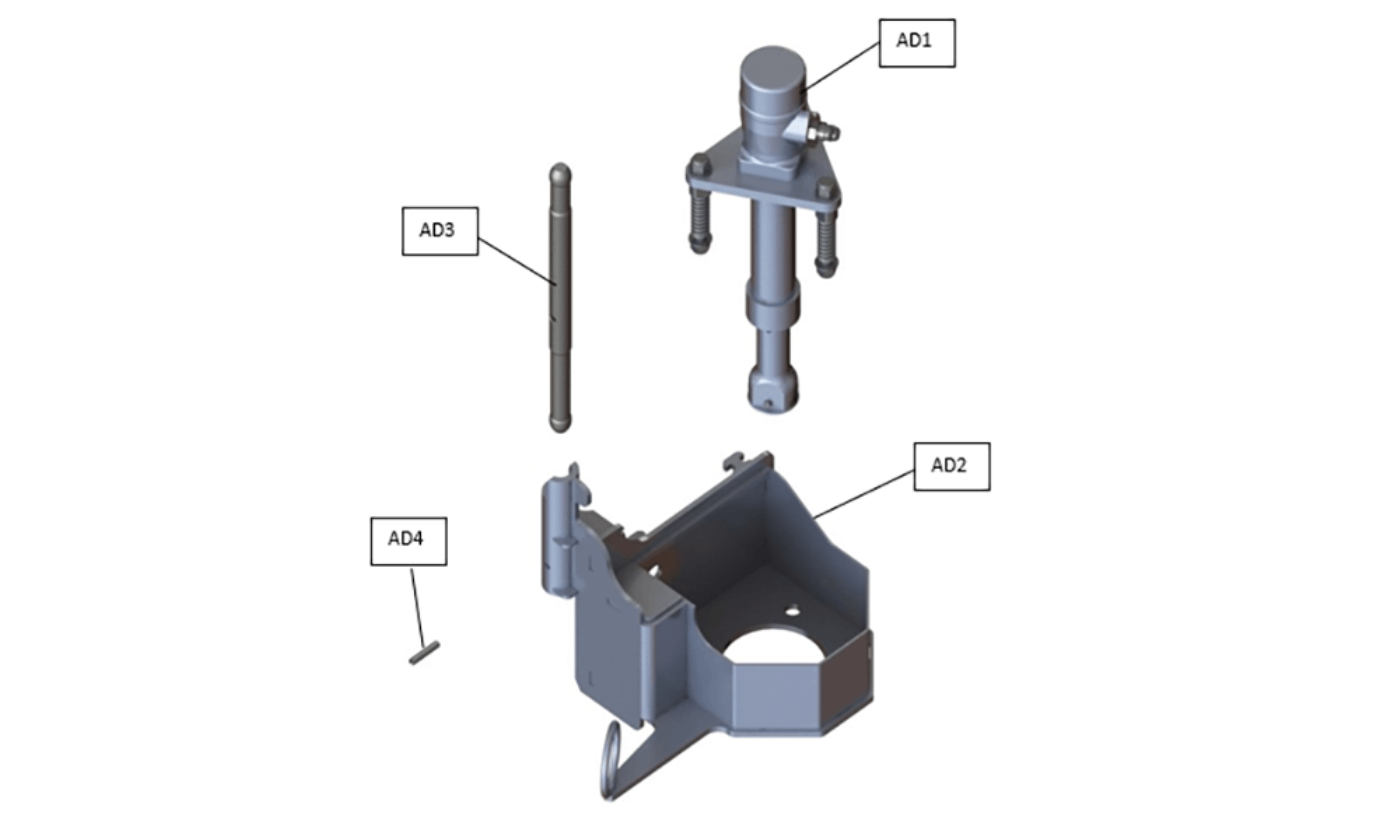

AD Digger Carriage Assembly Complete

Part No.: ADC-DC-A01-A

$2,278.41 ex

AD1

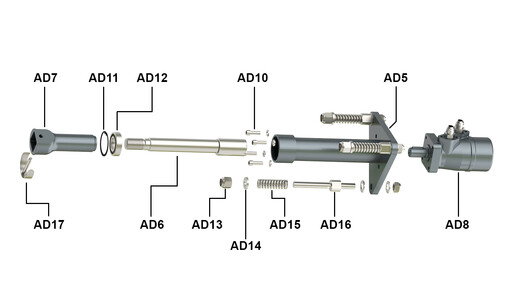

AD Auger Drive Shaft Assy w/- motor

Part No.: ADC-DA-A01-B

$1,599.19 ex

AD2

AD Digger Carriage Weldment

Part No.: ADC-DC-W02-C

$561.10 ex

AD3

Digger Pivot Shaft

Part No.: ADC-DC-P13-C

$118.13 ex

AD4

M10 X 50mm Roll Pin

Part No.: RPIN10050

$6.19 ex

AD5

Drive Tube Weldment

Part No.: ADC-DA-W06-A

$304.60 ex

AD6

Drive Shaft Weldment

Part No.: ADC-DA-W02-B

$202.50 ex

AD7

AD Auger Chuck Machined

Part No.: ADC-DA-P240-D

$153.41 ex

AD8

Auger Motor 315cc/rev

Part No.: HYD-MM-315

$721.41 ex

AD9

M8 X 45MM Roll Pin

Part No.: RPIN08045

$3.94 ex

Enquire

AD10

3/8" UNC X 1 1/8" cap screw

Part No.: SHCSUNC0.375X1.125

$4.60 ex

AD11

Internal Circlip 62MM

Part No.: INTCCLIP62

$1.54 ex

AD12

AD DRIVE SHAFT BEARING

Part No.: HYD-6206-2RS

$31.50 ex

AD13

M16X2 NYLOC NUT

Part No.: NUTM16NYLC

$1.61 ex

AD14

M16 Heavy Duty Flat Washer

Part No.: WSHRF16

$0.40 ex

AD15

Munro Gimbal Spring (SS0416)

Part No.: HYD-SPR-22270

$16.31 ex

AD16

AUTO DRIVER GIMBLE BOLT

Part No.: ADC-DA-P23-A

$28.13 ex

AD17

Auger Retainer clip weldment

Part No.: ADC-DA-W290-A

$30.94 ex
