Digger

Individual Spare Parts

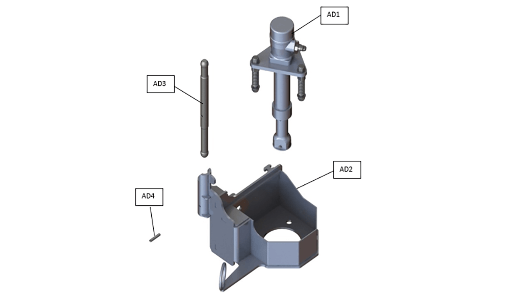

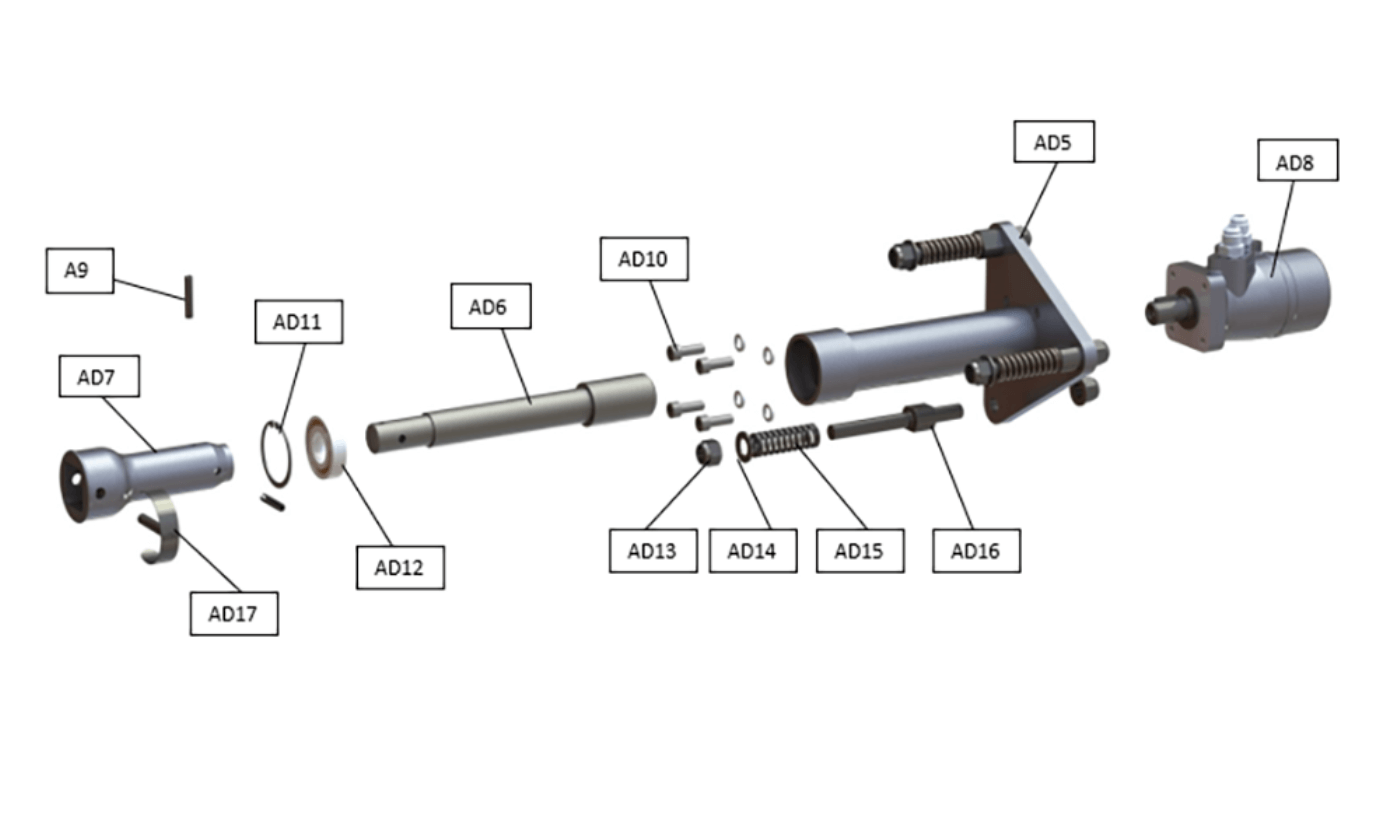

Notice: Ref is used to identiy the part from the exploded view, when contacting Munro Engineers use Part Number.

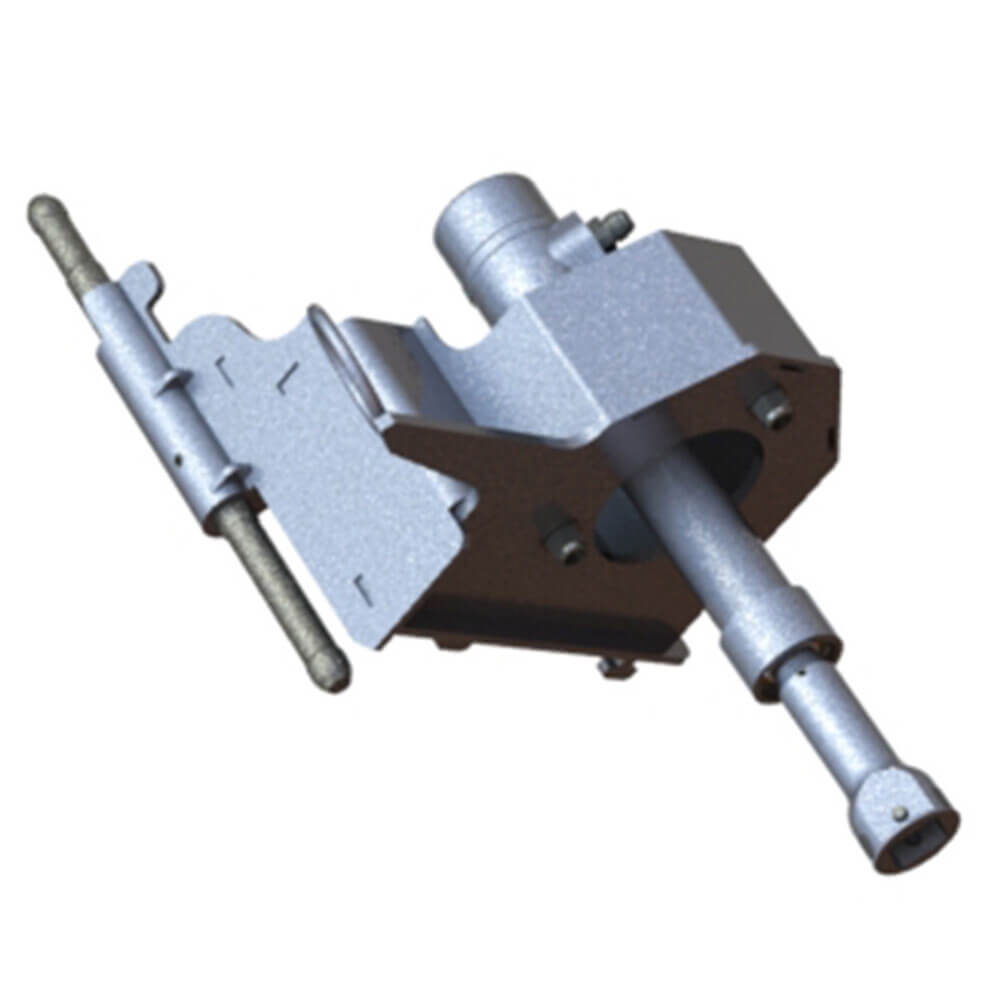

AD Digger Carriage Assembly (No drive assembly)

Part No.: ADC-DC-A01-A

$2,025.25 ex

AD1

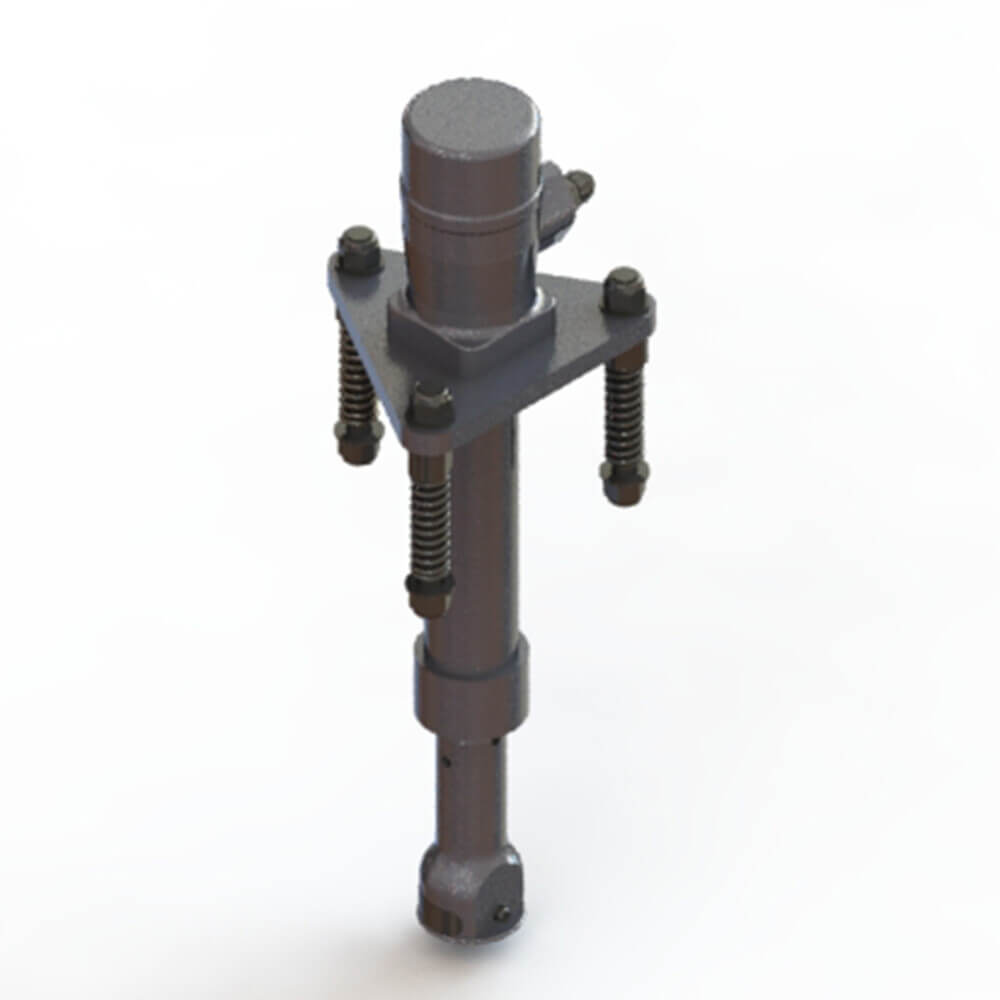

AD Auger Drive Shaft Assy - with motor

Part No.: ADC-DA-A01-B

$1,421.50 ex

AD2

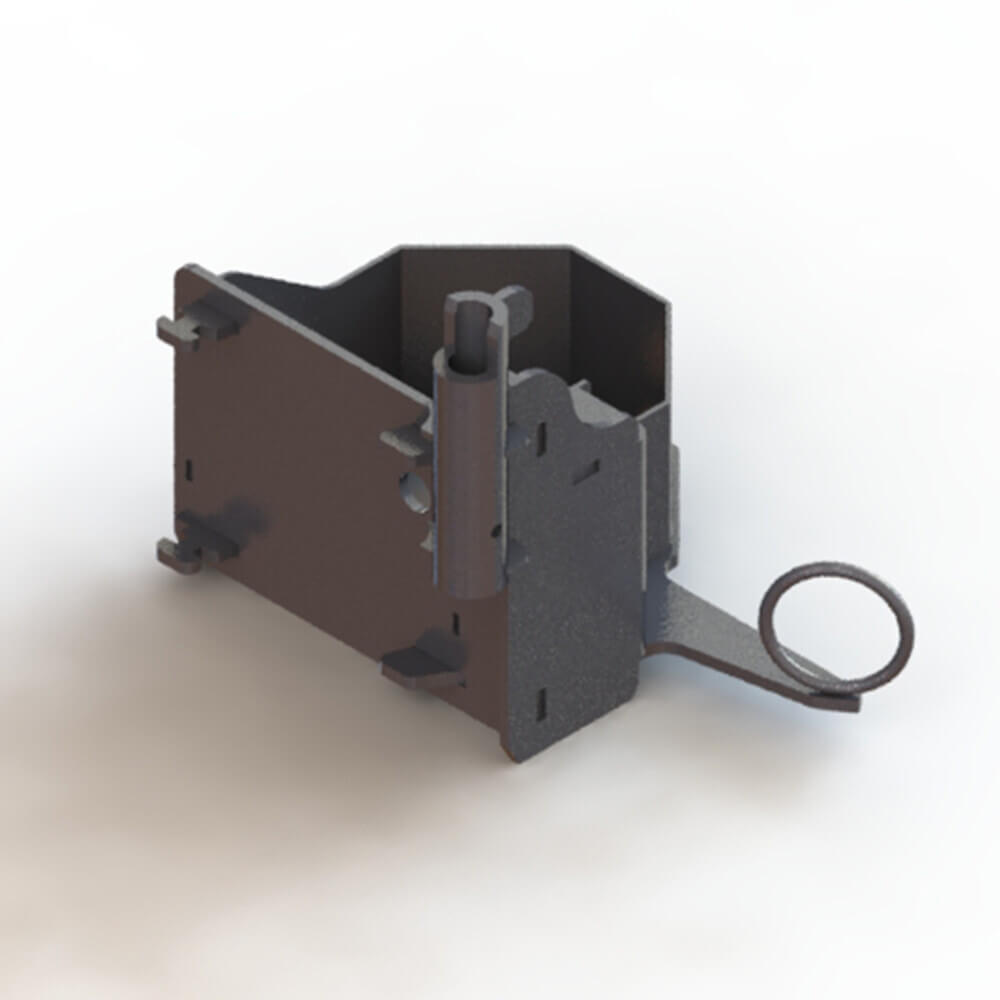

Digger Carriage Weldment

Part No.: ADC-DC-W02-C

$498.75 ex

AD3

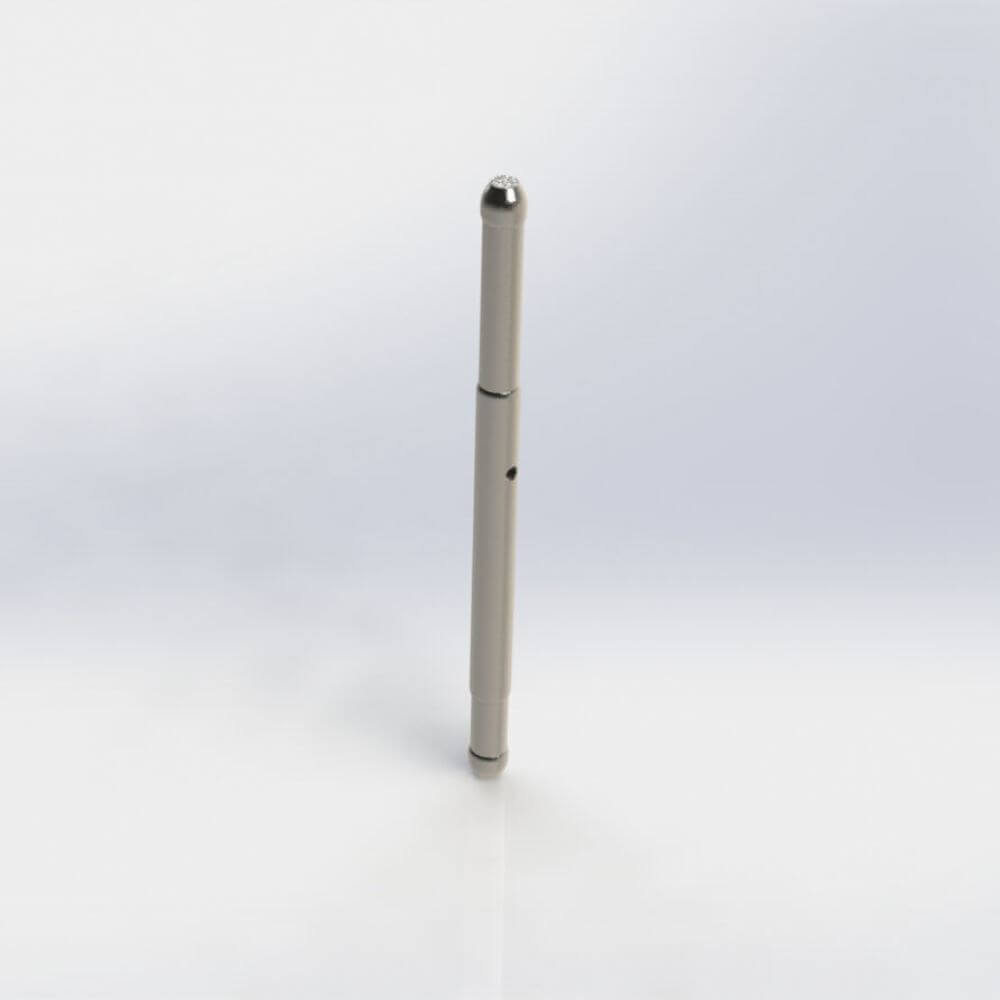

Digger Pivot Shaft

Part No.: ADC-DC-P13-C

$105.00 ex

AD4

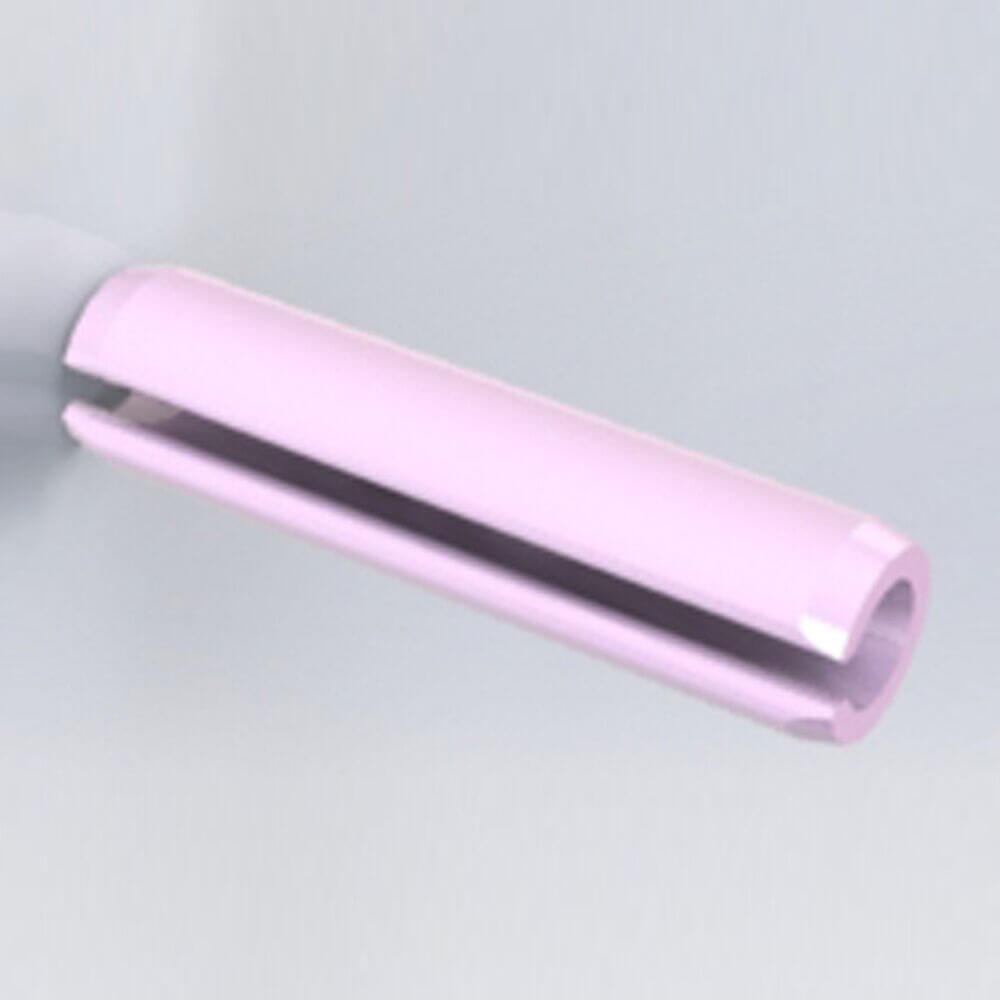

10X50 Roll Pin

Part No.: RPIN10050

$5.50 ex

AD5

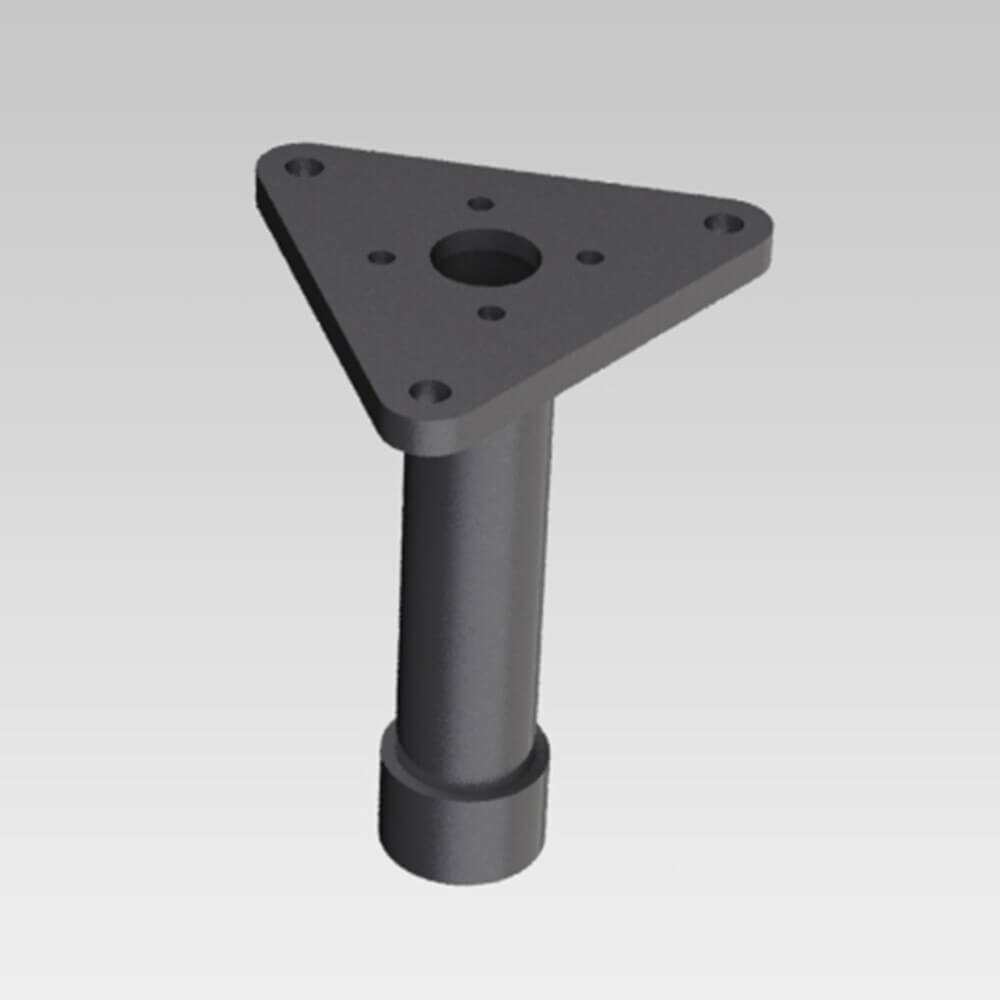

Drive Tube Weldment

Part No.: ADC-DA-W06-A

$270.75 ex

AD6

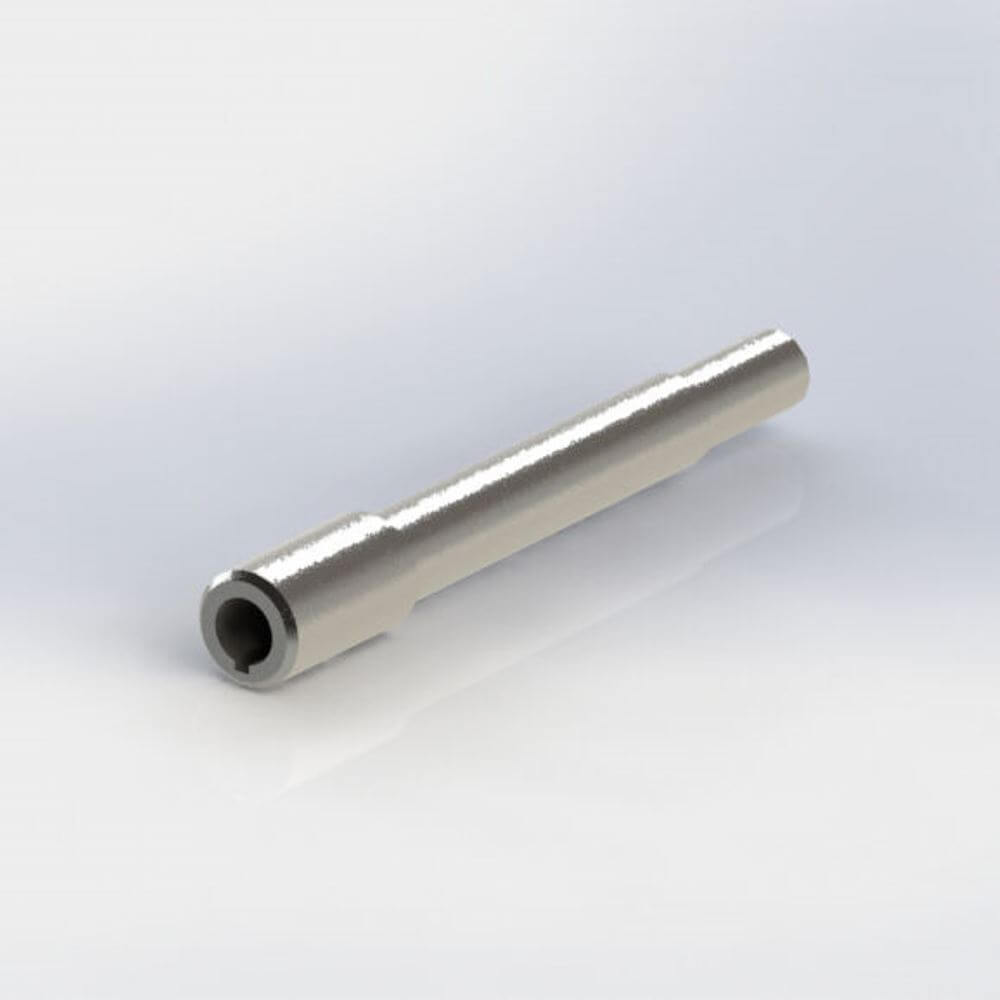

Drive Shaft Weldment-AD

Part No.: ADC-DA-W02-B

$180.00 ex

AD7

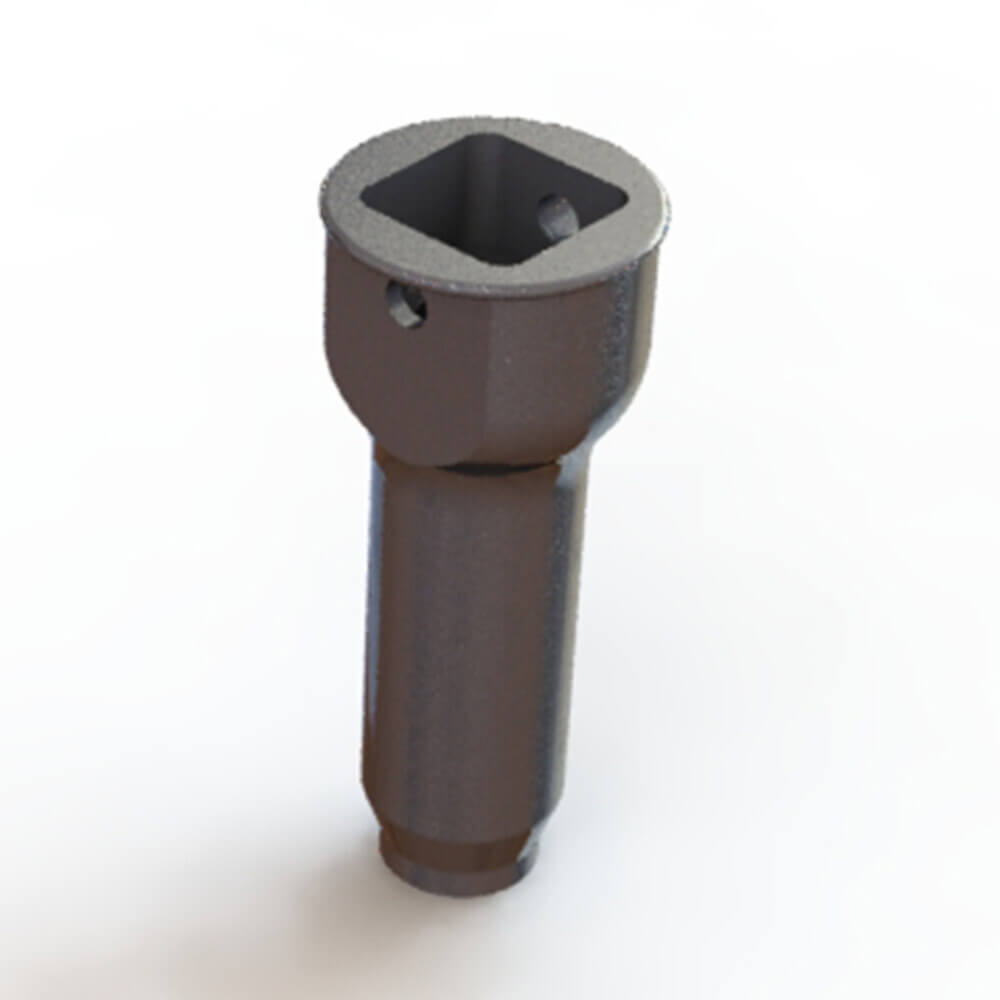

AD Auger Chuck Machined

Part No.: ADC-DA-P240-B

$136.36 ex

AD8

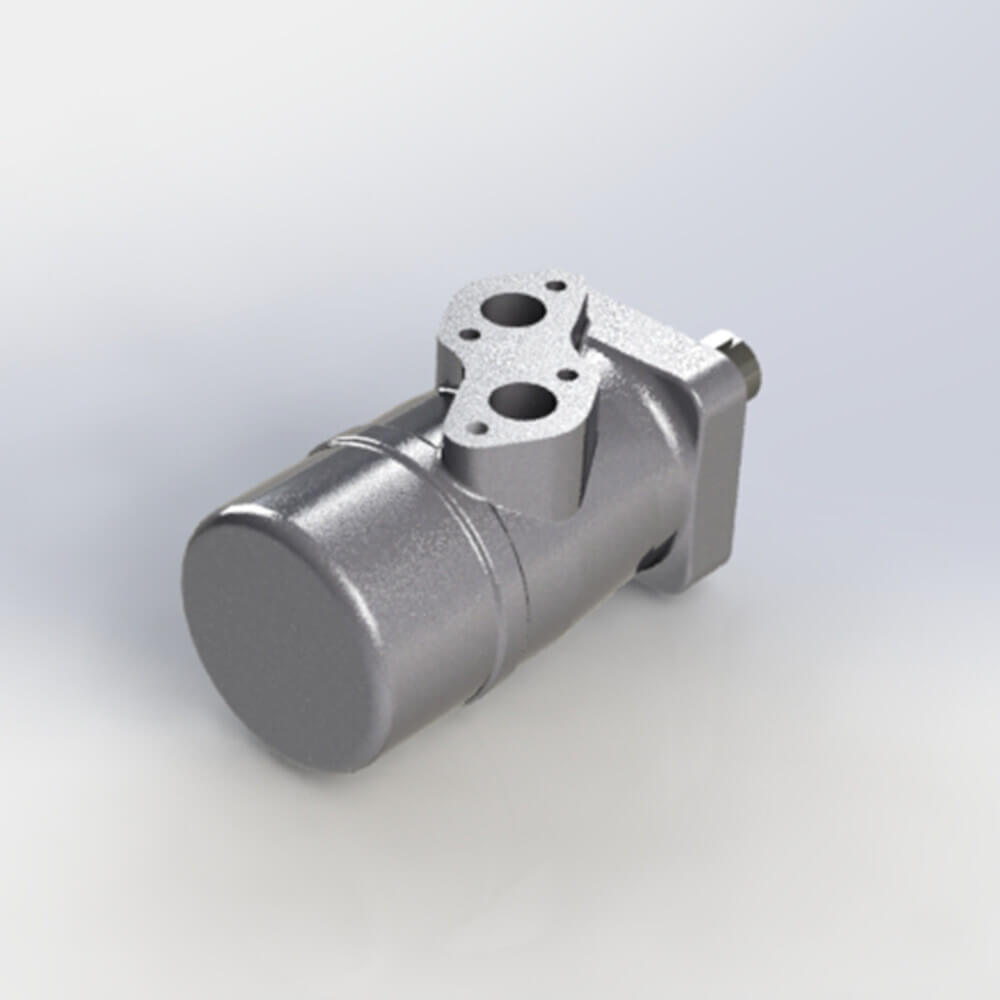

Auger Motor 315cc/rev

Part No.: HYD-MM-315

$641.25 ex

AD9

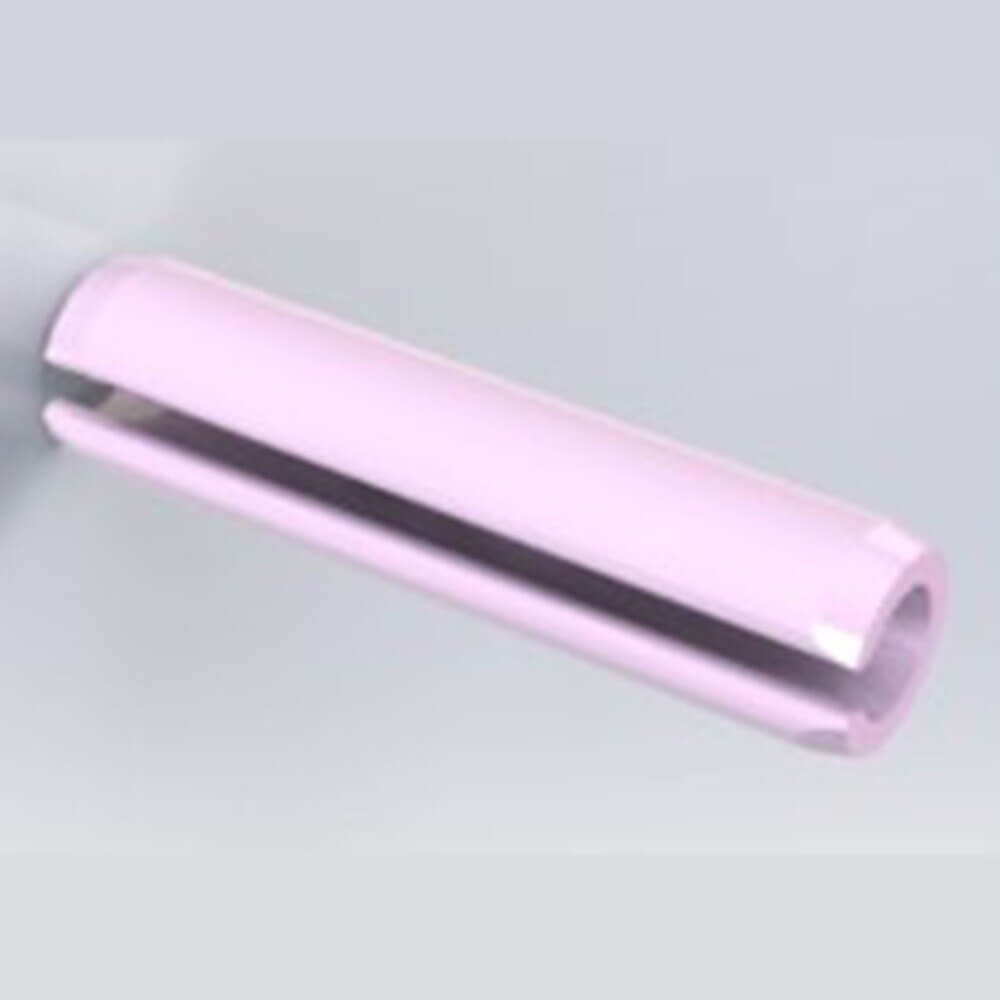

M8 X 45MM Roll Pin

Part No.: RPIN08045

$3.50 ex

AD10

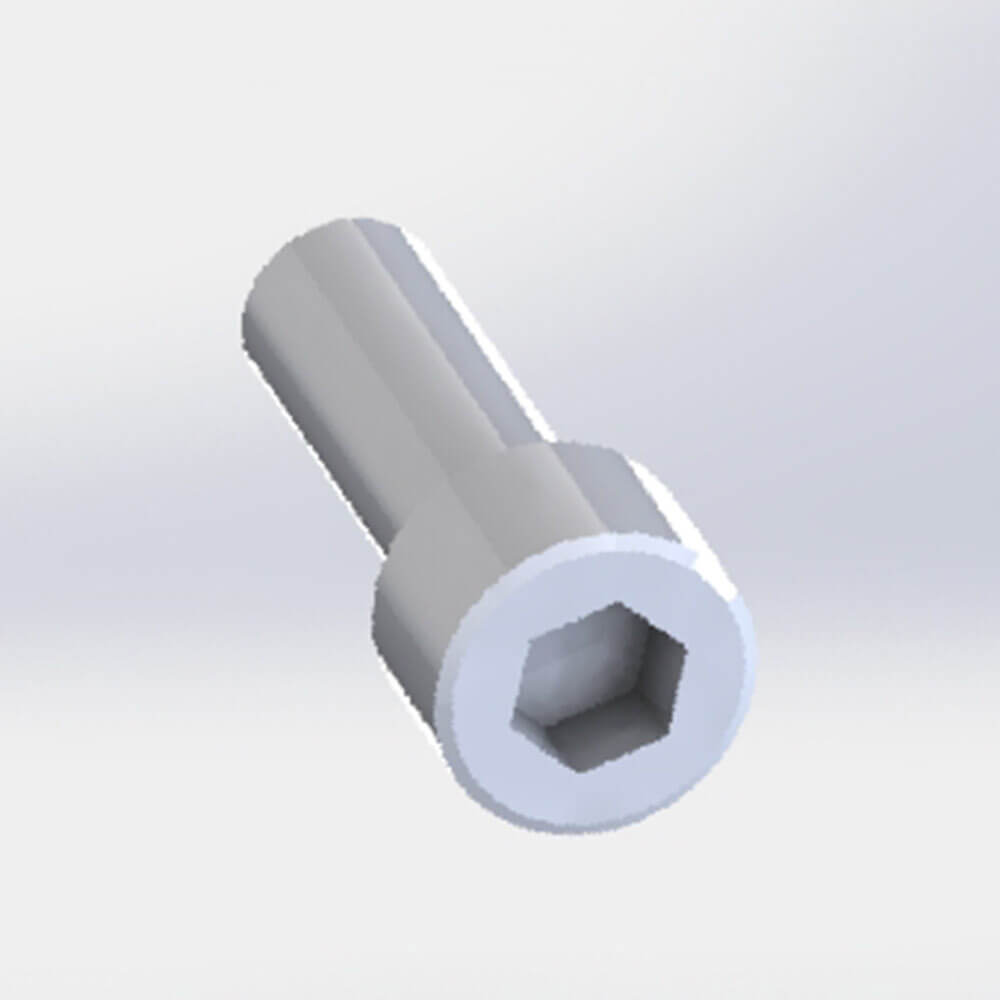

SHCS SCREW

Part No.: SHCS0.375x1Inch

$4.09 ex

AD11

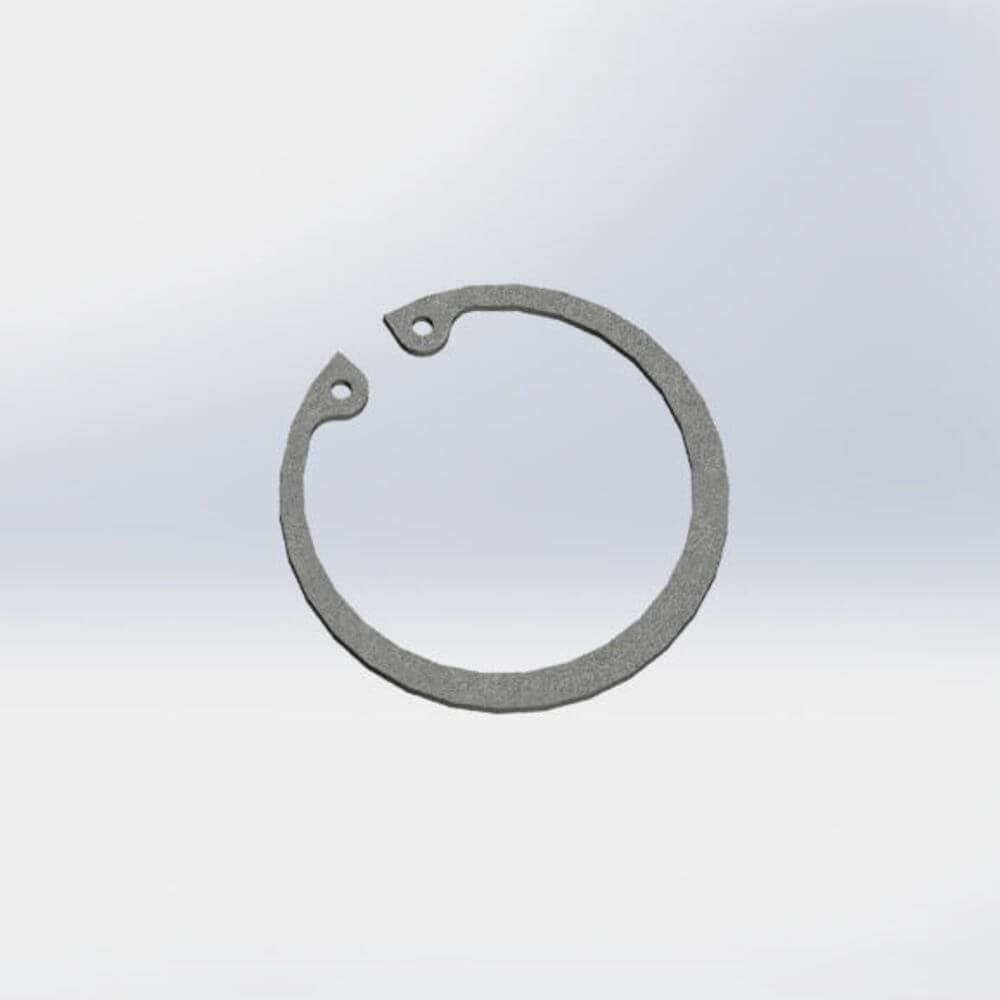

Internal Circlip 62MM

Part No.: INTCCLIP62

$1.36 ex

AD12

AD DRIVE SHAFT BEARING

Part No.: HYD-6206-2RS

$28.00 ex

AD13

M16x2 Nyloc Nut

Part No.: NUTM16NYLC

$1.43 ex

AD14

M16 Heavy Duty Flat Washer

Part No.: WSHRF16

$0.35 ex

AD15

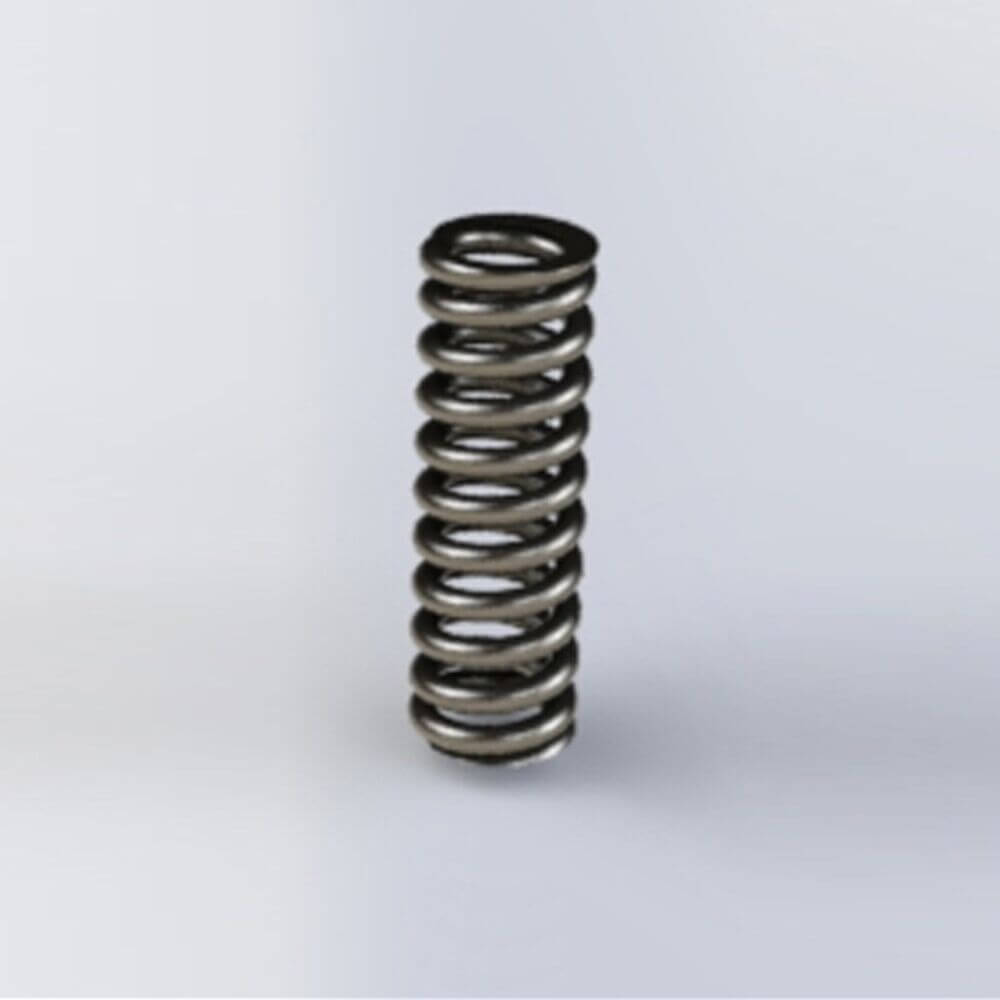

Munro Gimbal Spring (SS0416)

Part No.: HYD-SPR-22270

$14.50 ex

AD16

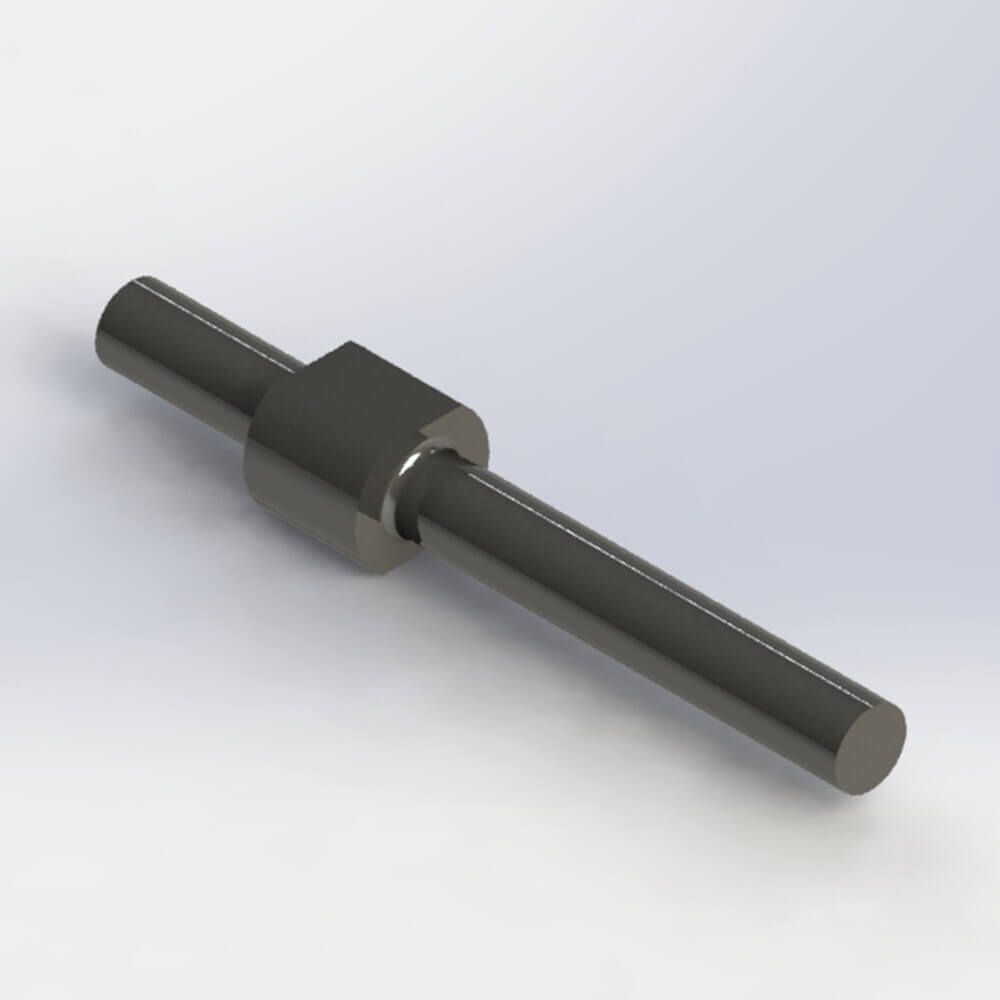

Drive Shaft Bolt

Part No.: ADC-DA-P23-A

$25.00 ex

AD17

Auger Retainer clip weldment

Part No.: ADC-DA-W290-A

$27.50 ex
